NetPlay Manager:  NetPlay Home controller
Product ID: nvmm

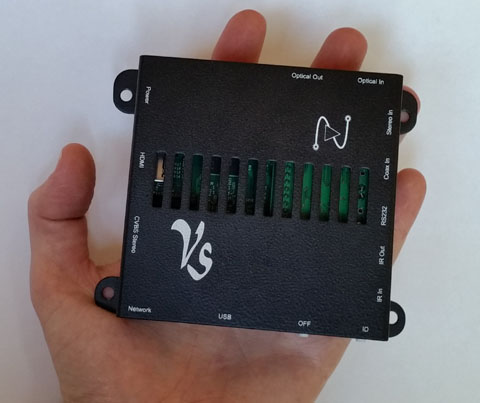

NetPlay Manager: NetPlay Home controller

Video Storm NetPlay Manager (a NetPlay Home product)

NEW SplashTiles feature

What is NetPlay Home? NetPlay Home is a revolutionary BYOH (Bring Your Own Hardware) network based AV distribution system. NetPlay Manager is the virtual matrix for your system, and it is Video Storm's system control solution for full control of NetPlay video and audio products via Android tablets with the NetPlay Mobile app. You can also use our free Control4 and RTI drivers or our protocol manual to build your own driver.

NetPlay Home enables you to:

Product Details:  NetPlay Manager
NetPlay Manager is the controller CPU for your NetPlay Home system.
Full details on how to plan and order your NetPlay Home system are at NetPlay Home for Residential Installations.
You will need 1 NetPlay Manager to control your NetPlay Home system.



Faetures and demonstation videos
Videos showing basic and advanced features of our NetPlay distribution system.



NetPlay Manager features
NetPlay Manager product has the following features.

  • Centralized web configuration for your NetPlay Home system
  • Network API for connection to external 3rd party controllers (drivers downloadable from our web site)
  • License management for your NetPlay Home system
  • System statistics engine with email alerts
  • Status and control via web interface
  • Video Tiling with configurable grids (up to 9 tiles)
  • Video PIP support
  • Video Wall support (array size up to 32 displays)
  • SplashTiles web source support
  • Image display and/or transparent overlay network API
  • Programmable dynamic text overlays network API
  • Integrated HDHomeRun support for channel guide with favorites
  • Sink IR/RS232/ethernet control configuration and network API
  • Source IR/RS232/ethernet control configuration and network API



NetPlay Manager specifications

  • Micro USB power port (2A or greater supply required)
  • USB host port x 4
  • HDMI output
  • CVBS / analog audio output.  Tripole 3.5mm
  • Wired 100 mbps ethernet port
  • Enclosure.  4" x 3" x 1"
  • Low power operation.  <5 W
  • Internet required for license fetch and firmware updates



Unit includes:

  • NetPlay Manager device with 1 year warranty
  • USB power supply with 30 day warranty



Special NOTE:
We are continuously improving and adding capabilities to this product through new internal and 3rd party software.  All new features can be easily enabled by running our web updater and then selecting the desired features through the web config interface.  Some features on the website may be work in progress, and other new features may not be shown here.  Here is the latest NetPlay feature support matrix.

License options:

  1. Default: NetPlay Mobile App license (requires Android version 5.1). Provides full system control and small preview window of source video on your mobile devices.
  2. Optional: Full Screen Mobile Playback license: app with all sources enabled for full screen viewing on your mobile devices.
  3. Optional: IRUSB cable for IR control of sources.

Setup instructions

ORDERING NOTE: For each NetPlay Manager (NVMM), you can purchase NetPlay TV licenses corresponding to this device in the same purchase order, and a corresponding NetPlay Mobile app license will be assigned. A single order of NVMM with Netplay Mobile license and/or NetPlay TV licenses cannot be split between multiple systems. In other words, please place a separate order for each system with 1 NetPlay Manager (NVMM) and the required number of NetPlay TV licenses for that system.

Price: $599.00
